Inband air (10m) Product specifications

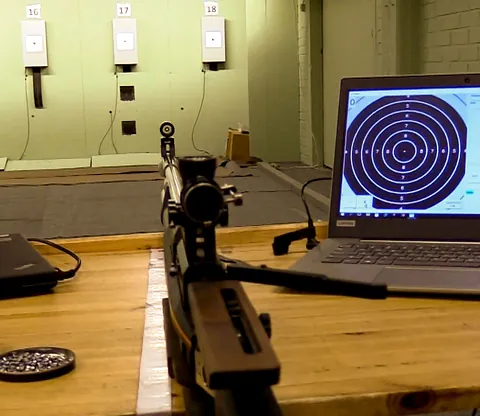

The InBand Air EST system is an advanced electronic shooting target system designed for 10-meter airgun shooting. This versatile system is ideal for both beginners and professional shooters, offering accurate and reliable performance.

Allowed Calibers

• 4.5mm Airgun pellet
• .22LR subsonic bullets

Operating principle

• Acoustical sensing with 4 microphones

Detection area

• 165mm X 165mm

Power source

• "12V DC (min 1A)

• 5V standard USB (2A)"

Illumination

• Integrated LEDs with SW controllable dimming

Connectivity

• USB and bluetooth option

• Ethernet (option for multiple targets)

Shielding

• 1.5mm steel for 4.5mm pellets

• 5mm steel for .22LR"

Physical dimensions

• H: 130mm

• W: 261mm

• L: 500mm

Weight

• 6.5kg (8.3 with bold plate)

Accessory products

3P Device

This 3-position device (170x170 mm, Model 3259) features a 12V DC power supply with radio control for "standing," "kneeling," and "prone" positions. A control light indicates red when moving and green when shooting is allowed. It utilizes a chain drive and roller bearings, and the robust stand is easy to remove. (Note: InBand device not included.)

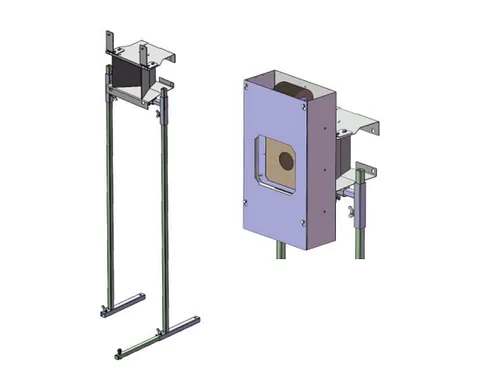

InBand Pellet with Foot Package

This foot package (Model 3528) allows for adjustable height. (Note: InBand device not included.)

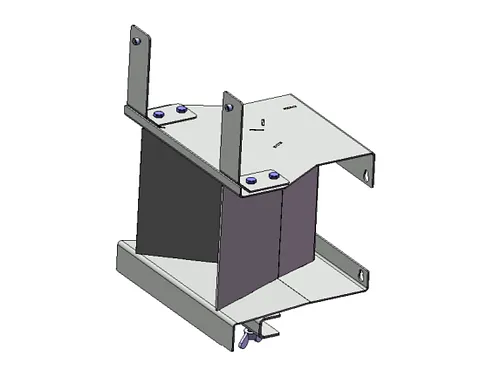

Pellet trap

This lightweight pellet trap (3.5 kg) requires no separate adapter and can be wall-mounted from the rear or fastened to the H-part (4112). Additionally, it allows for the installation of an InBand electronic target at the front. Finished with powder paint in RAL7035 gray.
