InBand Omni Product specifications

The InBand Omni 25/50 is a wireless electronic scoring target, based on acoustic sensors. It can be run from an outlet or a common power bank. The target has a shoot/no shoot light unit. In production green technology is followed.

Allowed Calibers

• Typical sport and center fire pistol calibers supported.

Operating principle

• Acoustical sensing with 4 microphones

Detection area

• 50cm X 50cm

Power source

• "12V DC (min 1A)

• 5V standard USB (5A)"

Options

• Red/green light with timer control

• Possible to chain multiple targets

Connectivity

• USB and bluetooth option

• Ethernet (option for multiple targets)

Shielding

• 5mm structural steel

Physical dimensions

• H: 180

• W: 710mm
• L: 750mm

Weight

• 26.7 kg

Accessory products

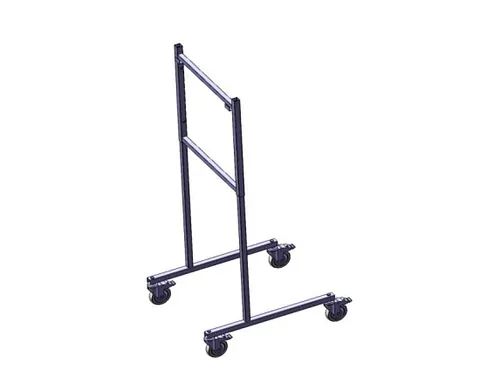

Foot package OMNI

Painted RAL7035 or black

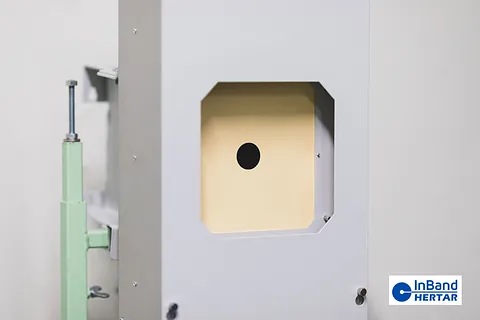

600x600 Pistol OMNI

This pistol target measures 600x600 mm with a depth of 682 mm and weighs 51 kg. It features a boron steel hit surface with round welded construction. For optimal performance, especially indoors, it is recommended to use a vacuum cleaner with a 51 mm outlet pipe. A trash collector is included, and the target is finished in RAL 7035 (light grey) paint.

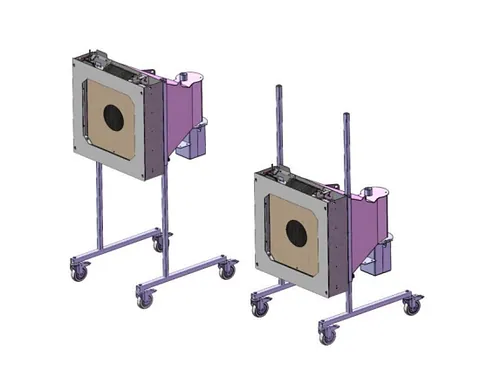

Adjustable Foot Package

This InBand bullet system features a 600x600 mm target (4236) with an adjustable foot package (4202) for customizable height. Please note that the InBand device is not included.
